Description
4.7kW Complete Solar & Battery Kit – Solis 5kW Hybrid Inverter + Dyness 5.12kWh Battery
A complete solar PV and battery storage kit designed for residential, workshop, cabin and off-grid applications.
The system combines 10 × Jinko 470W All-Black N-Type solar panels, providing 4.7kW total solar capacity, with a Solis S6 5kW Hybrid Inverter and Dyness DL5.0C 5.12kWh battery.

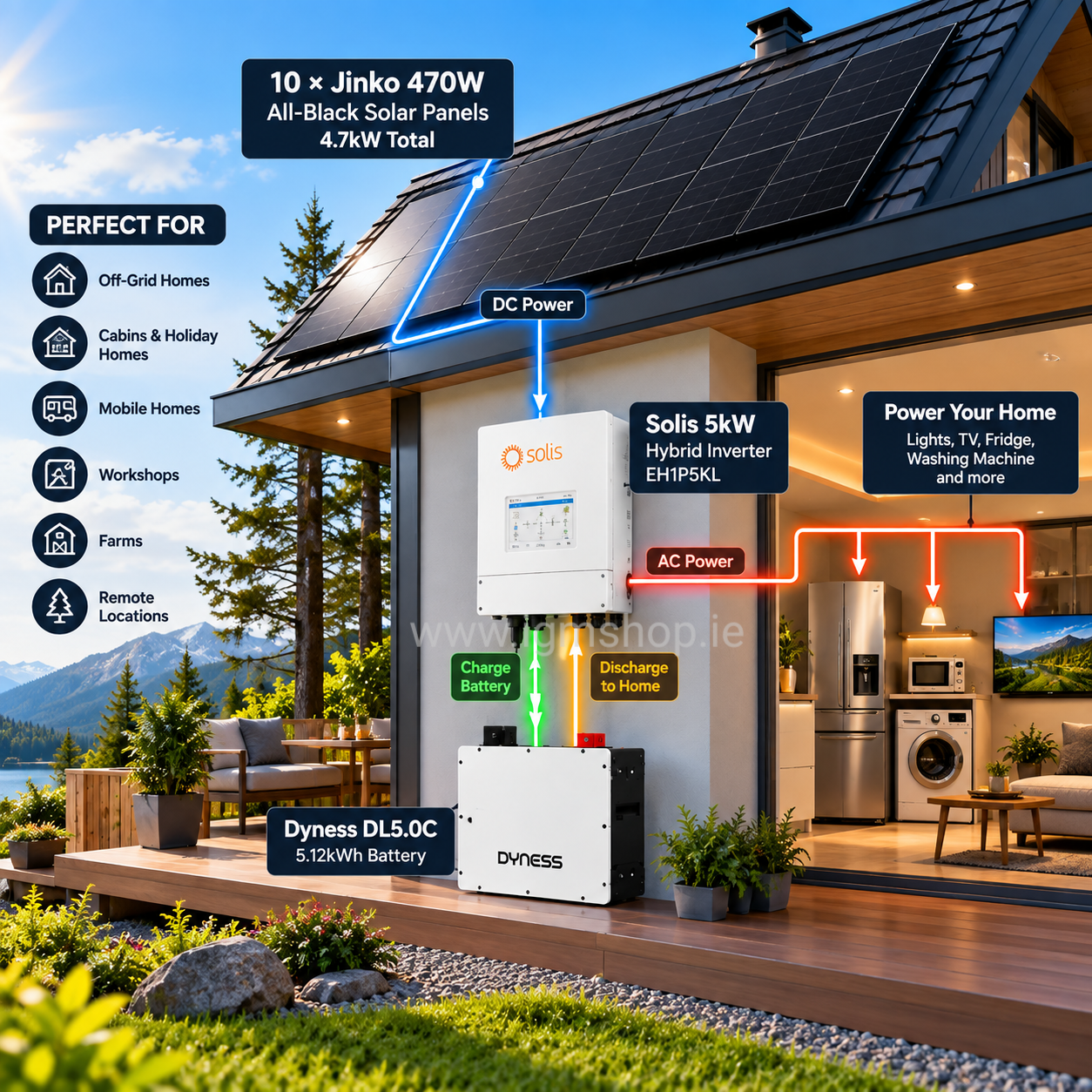

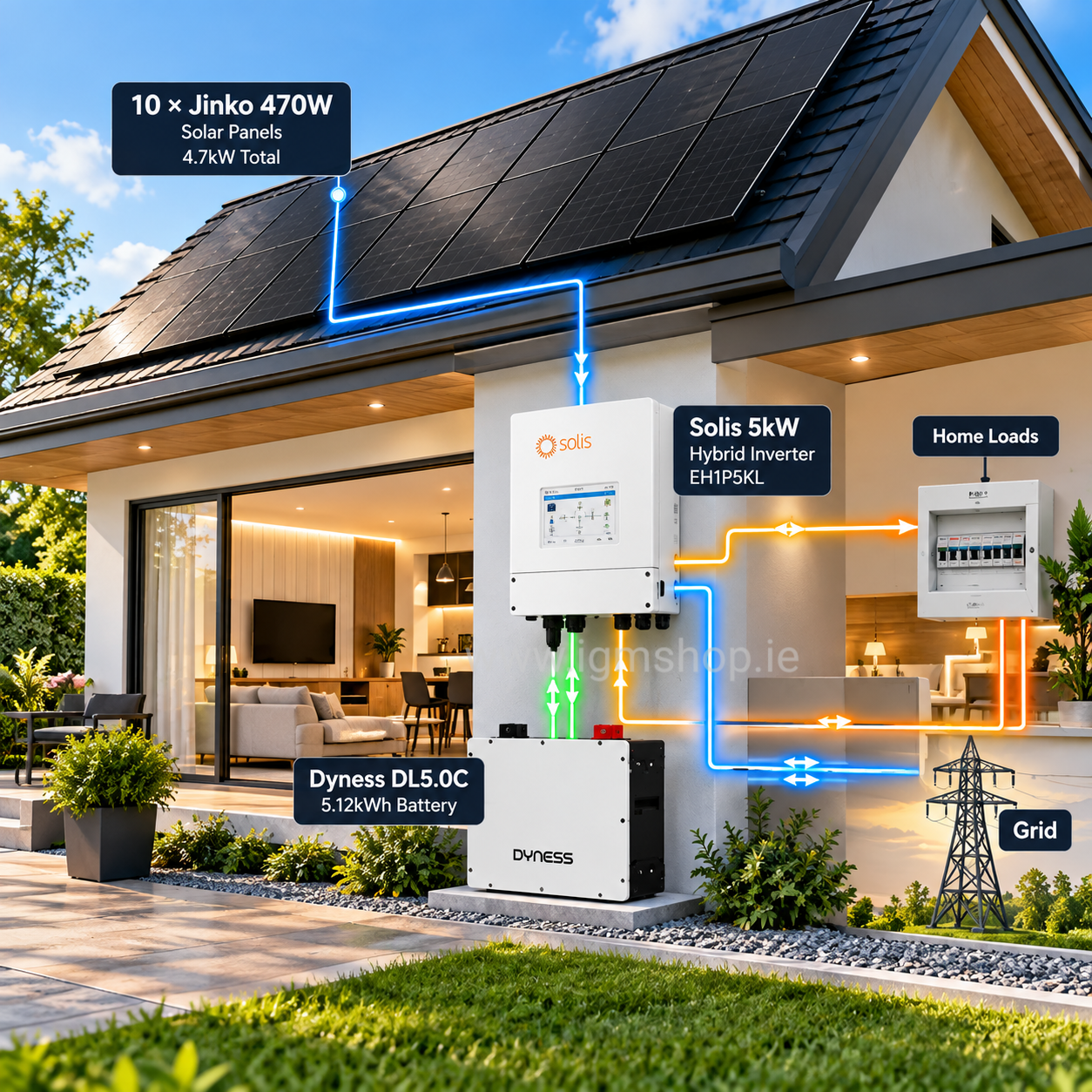

Solar energy generated during the day can be used to power the property, while excess energy can be stored in the battery for use later. The hybrid inverter manages solar generation, battery storage and the property's electrical supply.
The system can be used for grid-connected installations or as part of a properly designed completely off-grid system.

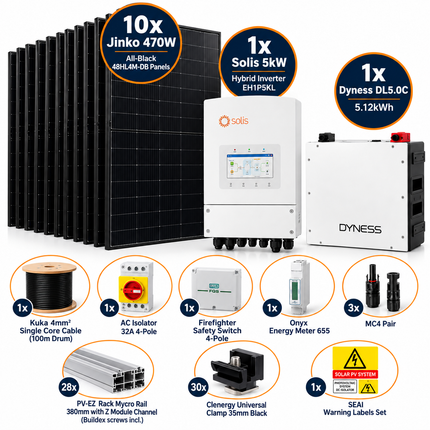

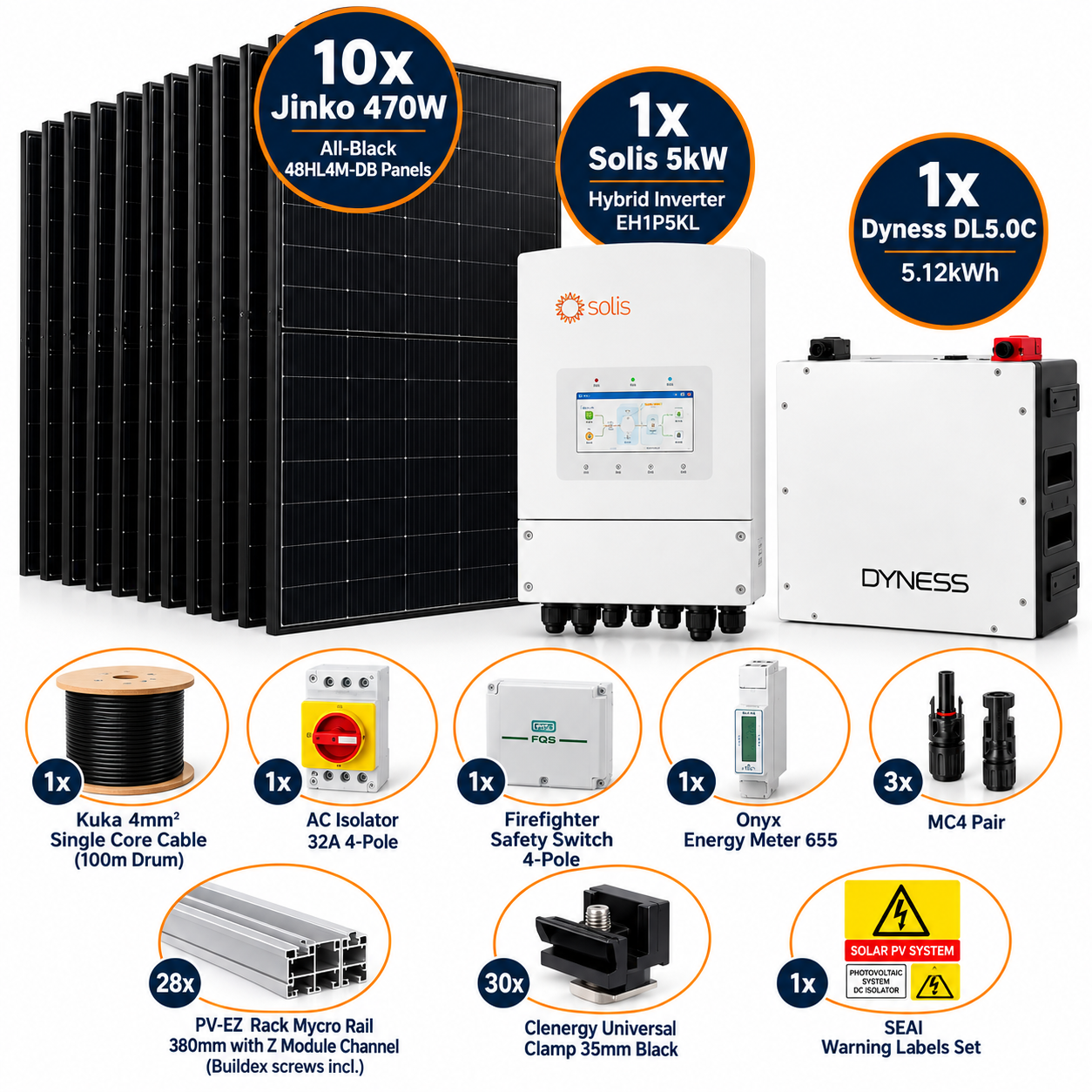

Kit Includes
- 10 × Jinko 470W All-Black 48HL4M-DB Solar Panels
- 1 × Solis S6 5kW Hybrid Inverter – EH1P5KL
- 1 × Dyness DL5.0C 5.12kWh Battery
- 1 × KUKA 4mm² Single-Core Cable – 100m Drum
- 1 × AC Isolator 32A 4-Pole
- 1 × Firefighter Safety Switch 4-Pole
- 1 × Onyx Energy Meter 655
- 3 × MC4 Connector Pairs
- 1 × SEAI Warning Label Set
- 28 × PV-EZ Rack Mycro Rail 380mm with Z Module Channel, including Buildex screws
- 30 × Clenergy Universal Clamp 35mm Black
System Specifications
Solar Array: 4.7kW
Solar Panels: 10 × 470W
Inverter: Solis 5kW Hybrid
Battery Storage: 5.12kWh
Battery: Dyness DL5.0C
Panel Type: All-Black N-Type
Suitable For
Residential solar and battery storage, off-grid homes, mobile homes, cabins, workshops and other properties looking for a complete solar and energy-storage solution.
Important Information
This is a supply-only kit. Installation is not included.
